Threading Tools

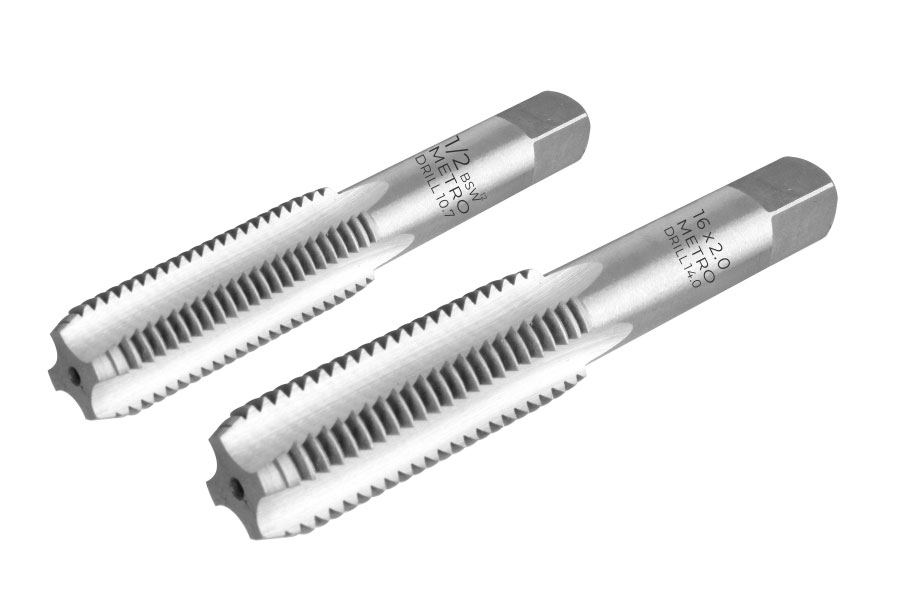

Hand Taps
Specifications:
BSW, BSF, UNF
| Size | Threads per Inch | Standard Packing | ||
|---|---|---|---|---|
| in inches | BSW | BSF | UNF | No. of sets |
| 1/8 | 40 | - | - | 50 sets |
| 5/32 | 32 | - | - | 50 sets |
| 3/16 | 24 | 32 | - | 50 sets |
| 7/32 | 24 | 28 | - | 50 sets |
| 1/4 | 20 | 26 | 28 | 50 sets |
| 5/16 | 18 | 22 | 24 | 50 sets |
| 3/8 | 16 | 20 | 24 | 50 sets |
| 7/16 | 14 | 18 | 20 | 50 sets |
| 1/2 | 12 | 16 | 20 | 10 sets |
| 9/16 | 12 | 16 | 18 | 10 sets |
| 5/8 | 11 | 14 | 18 | 5 sets |
| 11/16 | 11 | 14 | 18 | 5 sets |
| 3/4 | 10 | 12 | 16 | 5 sets |
| 13/16 | 10 | 12 | 16 | 5 sets |
| 7/8 | 9 | 11 | 14 | 5 sets |
| 15/16 | 9 | 11 | 14 | 5 sets |
| 1 | 8 | 10 | 12 | 5 sets |
| 1.1/8 | 7 | 9 | 12 | 1 sets |
| 1.1/4 | 7 | 9 | 12 | 1 sets |
| 1.1/2 | 6 | 8 | 12 | 1 sets |
BSP
| Size in Inches |
|---|
| 1/8 |
| 1/4 |
| 3/8 |
| 1/2 |
| 5/8 |
| 3/4 |
| 1 |
| 1.1/4 |
| 1.1/2 |
NPT / BSPT
| Size in Inches |
|---|
| 1/8 |
| 1/4 |
| 3/8 |
| 1/2 |
| 5/8 |
| 3/4 |
| 1 |
| 1.1/4 |
| 1.1/2 |
BA
| Size in Inches | Standard Packing |
|---|---|
| 0 to 5 | 50 sets |
| 6 | 50 sets |
| 7 | 50 sets |
| 8 | 50 sets |
| 9 | 50 sets |
| 10 | 50 sets |
METRIC STANDARD
| Size in MM | Standard Packing |
|---|---|
| 2 x 0.4 | 50 sets |
| 3 x 0.5 | 50 sets |
| 4 x 0.7 | 50 sets |
| 5 x 0.8 | 50 sets |
| 6 x 1.0 | 50 sets |
| 7 x 1.0 | 50 sets |
| 8 x 1.25 | 50 sets |
| 9 x 1.25 | 50 sets |
| 10 x 1.5 | 50 sets |
| 11 x 1.5 | 10 sets |
| 12 x 1.75 | 10 sets |
| 14 x 2.0 | 10 sets |
| 16 x 2.0 | 5 sets |
| 18 x 2.5 | 5 sets |
| 20 x 2.5 | 5 sets |
| 22 x 2.5 | 5 sets |
| 24 x 3.0 | 5 sets |
| 25 x 3.0 | 5 sets |
| 27 x 3.0 | 1 sets |
| 30 x 3.5 | 1 sets |
| 33 x 3.5 | 1 sets |
| 36 x 4.0 | 1 sets |
| 39 x 4.0 | 1 sets |
| 40 x 4.0 | 1 sets |
METRIC STANDARD
Special Size Taps in MM (Standard Packing as per order)
| Size in MM | Size in MM |
|---|---|
| 2.5 x 0.45 | 18 x 1.5 |
| 3.5 x 0.6 | 20 x 1.5 |
| 5.5 x 0.9 | 20 x 2.0 |
| 8 x 1.0 | 22 x 1.5 |
| 8 x 1.5 | 22 x 2.0 |
| 9 x 1.5 | 24 x 1.5 |
| 10 x 1.0 | 24 x 2.0 |
| 10 x 1.25 | 25 x 1.5 |
| 11 x 1.0 | 27 x 1.5 |
| 11 x 1.25 | 27 x 2.0 |
| 12 x 1.0 | 30 x 1.5 |
| 12 x 1.25 | 30 x 2.0 |
| 12 x 1.5 | 30 x 3.0 |
| 13 x 1.5 | 33 x 1.5 |
| 14 x 1.0 | 33 x 2.0 |
| 14 x 1.25 | 36 x 1.5 |
| 14 x 1.5 | 36 x 2.0 |
| 14 x 1.5 | 39 x 1.5 |
| 16 x 1.25 | 39 x 2.0 |
| 16 x 1.5 | 40 x 3.0 |
